Cardiac Pulsatile Pump CS-S001

Overview

The Cardiac Pulsatile Pump CS-S001 is a device designed to simulate the blood flow of the human left and right heart. It is suited to medical simulation and laboratory research applications, replicating body temperature, pulsatile blood circulation, and heartbeat in a compact benchtop system.

The pump generates sinusoidal waveform flow with adjustable flow rate, ensuring accurate and stable fluid delivery — the foundation for repeatable hemodynamic test conditions.

Product Highlights

• Adjustable heart rate and flow. 20-220 beats/min and up to 2000 mL/min, covering bradycardia through tachycardia test conditions.
• Precise temperature and fluid handling. Heating up to 99 C with ±0.8 C accuracy and 0.1 C resolution; compatible with water and blood-mimicking fluids for body-temperature circulation.

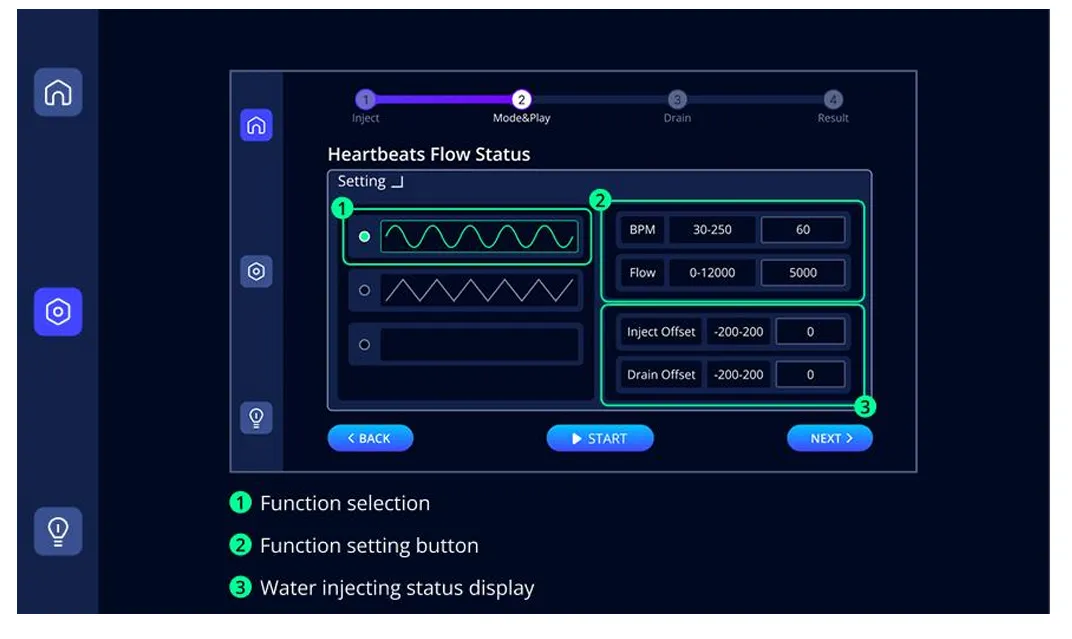

• Customizable pulsatile waveforms. Sinusoidal and linear shapes with full parameter control for reproducible flow profiles.
• Compact, versatile design. 204 x 180 x 260 mm pump with a 5 L water tank, touchscreen control, DC motor drive, and packaging designed for easy transport.

Applications

• Interventional device testing — drive physiological pulsatile flow through mock vessels during catheter, stent, and delivery-system evaluation.
• Endovascular training — combined with silicone vascular models, the pump creates a realistic beating circulation for procedure practice.
• Laboratory research — stable, parameterized flow for hemodynamic studies and flow-loop experiments.

Integration and Customization

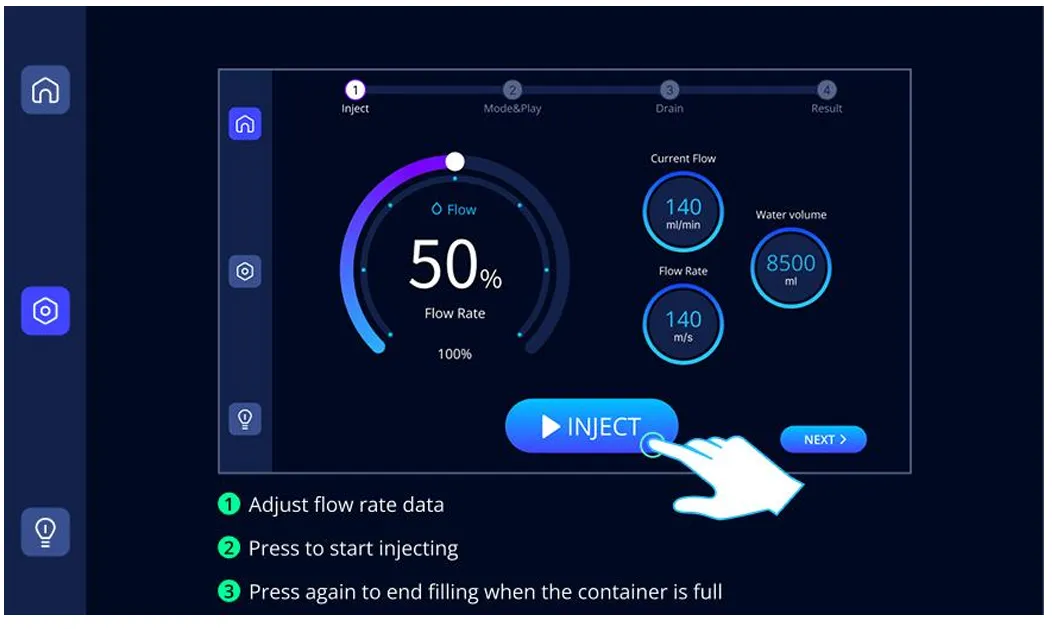

The CS-S001 is the flow engine behind Zlinemed’s full-body vascular simulation system. Pair it with the aortic intervention model or cerebral artery model ICA001, and connect it to your own mock vessels through standard tubing. Waveform parameters are configurable from the touchscreen; for a custom flow-loop configuration or modified waveform library, describe your test protocol through the contact page.
